1000VA, 900W, LCD, menedzselhető, USB2.0, soros port SOS UPS forródrót : Telefon
: +36 1 236-3060 Fax : +36 1 349-6721 Email : sosups@sosups.hu Képzett mérnökök
segítenek az FSP UPS üzemeltetésével kapcsolatos problémák megoldásában. A

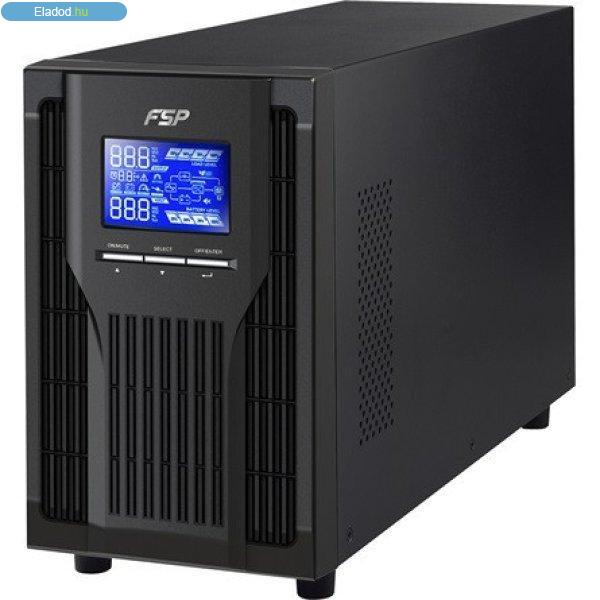

garanciális ügyintézés továbbra is nálunk történik. FSP Champ is the high
density version of double-conversion online UPS with a output power factor 0.9.
It?s designed in small cabinet with microprocessor controller. Champ also have
USB and RS-232 communication ports as standard, with a built-in intelligent slot
for additional adapters, protocol converters and relate contact cards. Features:
True double-conversion Microprocessor control optimizes reliability Input power
factor correction Output power factor 0.9 Wide input voltage (120 V ? 300 V)
Converter mode available ECO mode for energy saving Generator compatible Charger
capacity expansion to 6A for long-run models Smart SNMP works well with either
USB or RS-232 together Comprehensive display allows easy monitoring and access
of UPS status Specifications: Model Champ TW 1K(L) Champ TW 2K(L) Champ TW 3K(L)
Capacity 1000 VA / 900W 2000 VA / 1800W 3000 VA / 2700W Input Voltage Range
120-300 VAC ą5% Input Frequency 40Hz ~ 70Hz Power Factor ? 0.99 @ Nominal
Voltage (100% load) Output Voltage ą 1% (Batt. Mode) Output Frequency Range 47.5
Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)50 Hz ą0.25 Hz or 60 Hz ą0.3 Hz
(Batt. Mode) Current Crest Ratio 3:1 Harmonic Distortion ? 3 % THD (Linear
Load)? 6 % THD (Non-linear Load) Output Transfer Time (Typical) Zero (AC to
DC)4ms (Inverter to Bypass) Output Waveform (Batt. Mode) Pure Sinewave Battery
Type & Number 12V / 9Ah x 2 12V / 9Ah x 4 12V / 9Ah x 6 Backup Time (One PC
load@120W) N/A Typical Recharge Time (up to 90% capacity) 4 hours Indicators /
AC Mode Indicators / Battery Mode Indicators / Battery level Indicators / Load
level Indicators / Bypass mode Indicators / Fault Alarm / Battery Mode Sounding
every 4 seconds Alarm / Low Battery Sounding every second (Batt. Mode) Alarm /
Overload Sounding twice per second Alarm / Fault Continuously sounding Physical
Dimension (mm) 282 x 145 x 220 397 x 145 x 220 421 x 190 x 318 Physical Net
Weight (kg)Standard Model 9.8 17 27.6 Physical Net Weight (kg)Long-run Model 4.1
6.8 7.4 Operating Environment / Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Operating Environment / Noise Level Less than 50dB @ 1 Meter Management /
Optional USB / RS-232 Port Supports WindowsŽ 98/2000/2003/XP/Vista/2008,
WindowsŽ 7/8, Linux, and MAC Optional SNMP Power management from SNMP manager
and web browser
