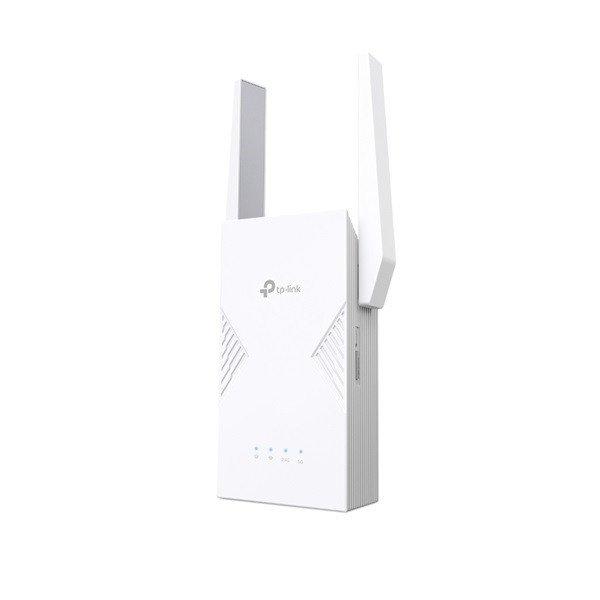

TP-LINK Wireless Range Extender Dual Band BE3600 Wifi 7, RE235BE
ARDWARE FEATURES Interface 1× 2.5 Gbps Ethernet Port
Button ? WPS Button ? Reset Button Input Power
100-240V~50/60Hz 0.3A Max. Power Consumption 15W
Dimensions ( W x D x H ) 3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna 2 External Antennas WIRELESS FEATURES
Wireless Standards Wi-Fi 7 IEEE 802.11be/ax/ac/n/a 5 GHz IEEE
802.11be/ax/n/b/g 2.4 GHz Frequency ? 5 GHz ? 2.4 GHz
Signal Rate ? 2882 Mbps at 5 GHz ? 688 Mbps at 2.4 GHz Working
Modes Range Extender/Access Point Reception Sensitivity 5GHz:
11be EHT20 MCS0:-96dBm 11be EHT40 MCS0:-94dBm 11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm 11be EHT20 MCS13:-59dBm 11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm 11be EHT160 MCS13:-51dBm 2.4GHz: 11be
EHT20 MCS0:-95dBm 11be EHT40 MCS0:-93dBm 11be EHT20 MCS13:-58dBm 11be
EHT40 MCS13:-56dBm Wireless Security ? WPA/WPA2-PSK encryptions ?
WPA2/WPA3 Advanced Features ? Multi-Link Operation (MLO) ? 160
MHz Channel ? 4K-QAM ? Multi-RUs Transmission Power FCC: ?
2.4GHz < 30dBm ? 5GHz < 30dBm Mesh Technology EasyMesh-Compatible
Wireless Function ? LED Control ? Access Control ? Power
Schedule ? Wi-Fi Coverage OTHER Network
Services Enabled by Default Web Server Manage and configure device through
web (HTTP/HTTPS) ? Port: 80/443 Protocol: TCP DHCP Server IP address
assignment (DHCP) ? Port: 67 Protocol: UDP App management Manage and
configure device through app ? Port: 20001 Protocol: TCP ? Port: 20002
Protocol: UDP OTHERS Certification FCC,
RoHS Package Content ? Wi-Fi 7 Range Extender RE235BE ? Quick
Installation Guide System Requirements Internet Explorer, Firefox,
Chrome, Safari, or other JavaScript-enabled browser Environment ?
Operating Temperature: 0?~40? (32? ~104?) ? Storage Temperature: -40?~70?
(-40? ~158?) ? Operating Humidity: 10%~90% non-condensing ? Storage
Humidity: 5%~90% non-condensing
