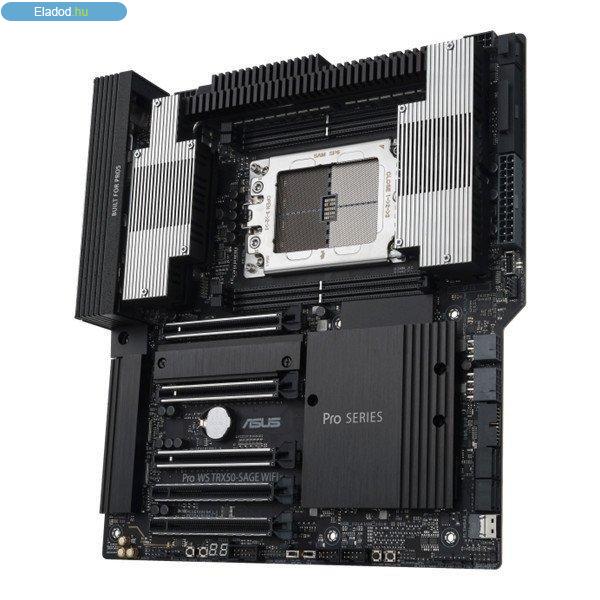

ASUS Alaplap sTR5 PRO WS TRX50-SAGE WIFI AMD TRX50, CEB Model Pro WS TRX50-SAGE
WIFI CPU AMD Socket sTR5 for Ryzen? Threadripper? PRO 7000 WX-Series and Ryzen?
Threadripper? 7000 Series Processors * Chipset AMD TRX50 Chipset Memory 4 x DIMM
slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported
memory types, data rate (speed), and number of DRAM modules vary depending on
the CPU and memory configuration, for more information please refer to
CPU/Memory Support list under the Support tab of product information site or
visit https://www.asus.com/support/. Expansion Slots AMD Ryzen? Threadripper?
PRO 7000 WX-Series and Ryzen? Threadripper? 7000 Series Processors 2 x PCIe 5.0
x16 slots 1 x PCIe 5.0 x16 slot(x8 mode) 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16
slot(x4 mode) * Please check the PCIe bifurcation table on the support site
(https://www.asus.com/support/FAQ/1037507/) Storage Total supports 3 x M.2
slots, 4 x SATA 6Gb/s ports AMD Ryzen? Threadripper? PRO 7000 WX-Series and
Ryzen? Threadripper? 7000 Series Processors M.2_1 slot (Key M), type
2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD TRX50 Chipset M.2_3 slot (Key M),
type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot
supports PCIe 4.0 x4 mode NVMe device * AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. Ethernet 1 x MarvellŽ AQtion 10Gb
Ethernet 1 x IntelŽ I226-LM 2.5Gb Ethernet Wireless & Bluetooth Wi-Fi 7* 2x2
Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 160MHz
bandwidth, up to 2.9Gbps transfer rate. BluetoothŽ v5.4*** *Wi-Fi features may
vary depending on the operating system For Windows 11, Wi-Fi 7 will require SV3
or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E. For
Windows 10, please note that no driver is available , please refer to the Wi-Fi
chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries. *** The BluetoothŽ version may vary,
please refer to the Wi-Fi module manufacturer's website for the latest
specifications. USB Rear USB (Total 9 ports) 1 x USB 20Gbps port (1 x USB
Type-CŽ) 6 x USB 10Gbps ports (6 x Type-A ) 2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-CŽ with up
to 27W PD/QC4+) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB
2.0 headers support additional 4 USB 2.0 ports Audio Realtek ALC1220P Surround
Sound High Definition Audio CODEC* - Impedance sense for front and rear
headphone outputs - Internal audio Amplifier to enhance the highest quality
sound for headphone and speakers - Supports: Jack-detection, Multi-streaming,
Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and
113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback
Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-CŽ) 6 x USB 10Gbps ports
(6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module 1 x MarvellŽ AQtion
10Gb Ethernet port 1 x IntelŽ 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical
S/PDIF out port 1 x BIOS FlashBack? button 1 x Clear CMOS button Internal I/O
Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT
Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan
header (with VRM FAN onboard) Power related 2 x 24-pin Main Power connectors 2 x
8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin
PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2
slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector
supports USB Type-CŽ 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x BMC
header1 x COM Port header 1 x USB4 header1 x FlexKey button 1 x Front panel
audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button1 x
LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin
system panel header 1 x Chassis intrusion header 1 x Thermal Sensor header
Special Features ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM -
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) -
Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM
heatsink design with active fans ASUS EZ DIY - BIOS FlashBack? button - BIOS
FlashBack? LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield -
SafeSlot - SafeDIMMBespoke Motherboard Design & Business Focused Features -
24/7 Reliability - Overcurrent Protection Software Features ASUS Exclusive
Software Armoury Crate- Fan Xpert 4 ASUS CPU-Z IT Management software supported
- ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360
Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY -
ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash UtilityFlexKey BIOS 256 Mb Flash ROM,
UEFI AMI BIOS Manageability WOL by PME, PXE (UEFI mode) Accessories Cables 2 x
SATA 6Gb/s cables 1 x CPU 8-pin to PCIe 8-pin adapter cable package 1 x
Thermistor cable pack Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1) 2 x M.2 Rubber Packages 1 x
Q-connectorDocumentation 1 x ACC Express Activation Key Card 1 x QSG Operating
System WindowsŽ 11 64-bit Form Factor CEB Form Factor 12 inch x 11 inch (30.5 cm
x 28.3 cm)
