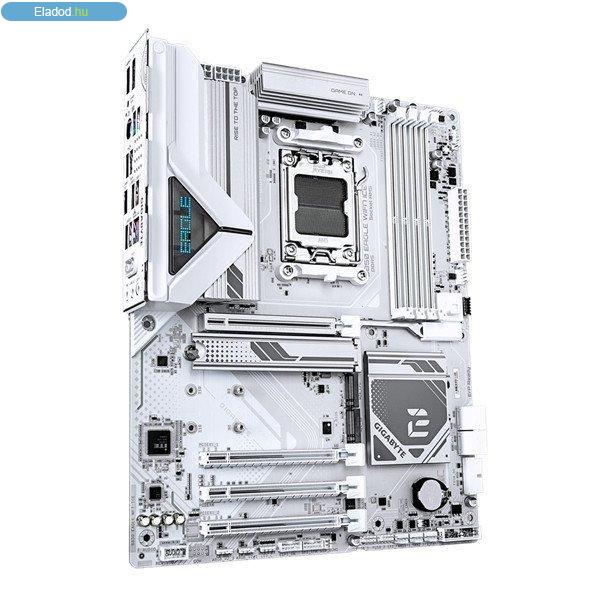

GIGABYTE Alaplap AM5 B850 EAGLE WIFI7 ICE AMD B850, ATX CPU AMD Socket AM5,
support for: AMD Ryzen? 9000 Series Processors/ AMD Ryzen? 8000 Series
Processors/ AMD Ryzen? 7000 Series Processors (Go to GIGABYTE's website for
the latest CPU support list.) Chipset AMD B850 Memory Support for
DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) /
7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) /
6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory
modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM
capacity)of system memory Dual channel memory architecture Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended
Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory
modules (The CPU and memory configuration may affect the supported memory
types, data rate (speed), and number of DRAM modules, please refer to Memory
Support List on GIGABYTE's website for more information.) Onboard Graphics
Integrated Graphics Processor with AMD Radeon? Graphics support: - 1 x
DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for
DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum
resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and
HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics
specifications may vary depending on CPU support.) Audio RealtekŽ Audio
CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the
functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings. LAN
RealtekŽ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication
module RealtekŽ Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting
2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz
wireless standard (Actual data rate may vary depending on environment and
equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly.
(There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band
availability depends on individual country's regulations. Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen?
9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen? 8000
Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen? 8000
Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can
only support a graphics card or an NVMe SSD. If only one graphics card is to be
installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI
Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 2 x PCI
Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) *
The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the SATA3 0 and SATA3 1
connectors. The SATA3 0/1 connector becomes unavailable when a device is
installed in the PCIEX1_1 or PCIEX1_2 slot. Storage Interface 1 x M.2
connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
22110/2280 SSDs: - AMD Ryzen? 9000/7000 Series Processors support PCIe 5.0
x4/x2 SSDs - AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2
SSDs - AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M
key, type 22110/2280 SSDs: - AMD Ryzen? 9000/7000 Series Processors support
PCIe 4.0 x4/x2 SSDs - AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe
4.0 x4/x2 SSDs - AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0
x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting
Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices *
RAID 5 is only available on AMD Ryzen? 9000 Series Processors. RAID 0, RAID
1, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB Type-CŽ
port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 2 Type-A
ports (red) on the back panel Chipset: - 1 x USB Type-CŽ port with USB 3.2 Gen
1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports
(2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB
2.0/1.1 ports available through the internal USB headers Internal I/O
Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power
connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU
fan/water cooling pump header 3 x system fan headers 1 x system fan/water
cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED
strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front
panel header 1 x front panel audio header 1 x USB Type-CŽ header, with USB 3.2
Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted
Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2
module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x
Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x
USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-CŽ port, with USB 3.2 Gen 1
support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R)
3 x audio jacks (Note) Actual support may vary by CPU. I/O Controller
iTEŽ I/O Controller Chip H/W Monitoring Voltage detection Temperature
detection Fan speed detection Water cooling flow rate detection Fan fail
warning Fan speed control * Whether the fan (pump) speed control function is
supported will depend on the fan(pump) you install. BIOS 1 x 256 Mbit
flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,
ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) *
Available applications in GCC may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specifications.
Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software NortonŽ Internet Security (OEM version) LAN bandwidth
management software Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
