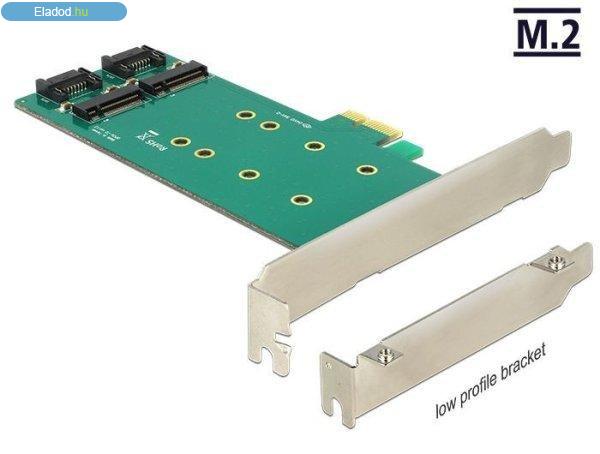

Csatolófelület : PCI-E M.2 csatlakozó : 2 PCI-E, 2xM.2 Leírás This PCI Express
card by Delock expands the PC by two M.2 slots. It can be connect two M.2 SATA
modules in format 22110, 2280, 2260, 2242, 2230 in the card and connect via SATA
cables to the mainboard. Műszaki adatok ? Connector: internal: 2 x 67 pin M.2
key B slot 1 x PCI Express x1 2 x SATA 6 Gb/s 7 pin female ? Interface: SATA ?
Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA ? Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported ? Data transfer rate up
to 6 Gb/s Rendszerkövetelmények ? Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64,
Linux Kernel 3.19 ? PC with one free PCI Express slot ? One free SATA 7 pin
interface for each connected M.2 module based on SATA A csomag tartalma ? PCI
Express card ? Low profile bracket ? 2 x fixing screw ? 2 x SATA cable, length
ca. 50 cm ? User manual
