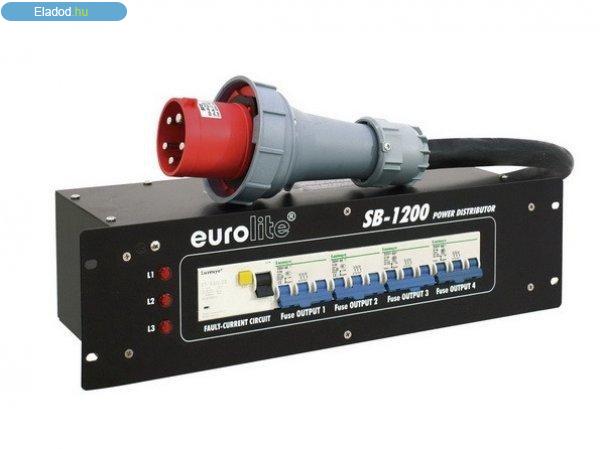

30248380 Specially designed for larger distribution needs 3 U
necessary for installation 63 A three-phase current input via 1 meter long 5
x 16 mm² power cable and plug The entire distributor is secured via
30 mA Residual Current Device (RCD) 2 x 32 A three-phase current outputs via
mounted sockets, each individually secured on the rearpanel by a 3-pin 32 A
circuit breaker 2 x 16 A three-phase current outputs via mounted sockets,
each individually secured on the rearpanel by a 3-pin 16 A circuit breaker
Control lamps indicate each phase With earthing screw in order to ground a
rigg if necessary Power supply: 380-400 V AC,
50 Hz ~ Max. power: 43470 W
Max. power/phase: 14490 W Max.
current/phase: 63 A Fuses: 2 x
C16A 3 Ph, 2 x C32A 3 Ph, FI/RCD 63A/0.03A Height:
3 U Dimensions (LxWxH): 485 x 310
x 132 mm Weight: 8.3 kg
