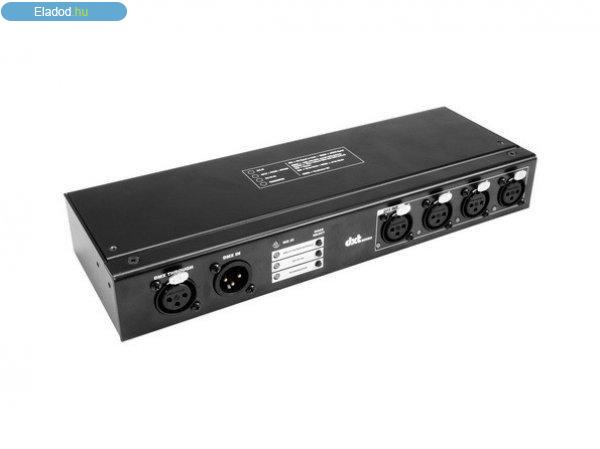

DMX splitter for splitting one DMX input signal to 4 DMX outputs
Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4
x DMX output Input and feed-through output are duplicated on the front and
rear panel and connected in parallel Supports RDM for bidirectional
communication over the DMX line Switchable filter mode allows all RDM data to
be filtered out in order to prevent problems when using fixtures intolerant of
RDM Bypass function to process signals from older devices similar to DMX
signals Output frequency adjustable: 22/44 Hz DMX fail mode selectable:
hold, blackout, null Switchable termination resistor Input and outputs XLR
3-pin (Neutrik) Outputs galvanically isolated Each DMX output with
independent driver and status indicator Each DMX output can be connected to
32 DMX devices Powered via included PSU Rack installation via optional
rack mounting kit (item 70064872) Made in Germany
Power supply: 12 V DC, 1 A via included PSU
Power consumption: 3.6 W DMX512 input:
2 x 3-pin XLR plug (Neutrik) DMX feed-through
output: 2 x 3-pin XLR connector (Neutrik)
DMX512 output: 4 x 3-pin XLR connector (Neutrik)
Dimensions (L x W x H): 275 x 100 x 41 mm
Weight: 1,25 kg
