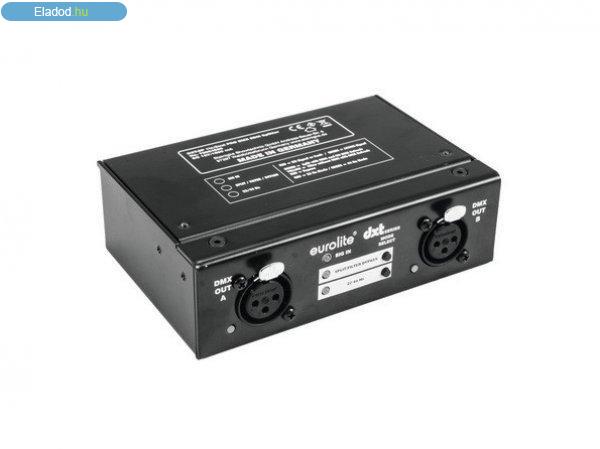

DMX splitter for splitting one DMX input signal to 2 DMX outputs
Connections: 1 x DMX input, 2 x DMX output Supports RDM for bidirectional
communication over the DMX line Switchable filter mode allows all RDM data to
be filtered out in order to prevent problems when using fixtures intolerant of
RDM Bypass function to process signals from older devices similar to DMX
signals Output frequency adjustable: 22/44 Hz DMX fail mode selectable:
hold, blackout, null Input and outputs XLR 3-pin (Neutrik) Outputs
galvanically isolated Each DMX output with independent driver and status
indicator Each DMX output can be connected to 32 DMX devices Powered via
included PSU Rack installation via optional rack mounting kit (item 70064872)
Made in Germany Power supply: 12 V DC, 1 A
via included PSU Power consumption: 1.8 W
DMX512 input: 1 x 3-pin XLR plug (Neutrik)
DMX512 output: 2 x 3-pin XLR connector
(Neutrik) Dimensions (L x W x H): 130 x
100 x 41 mm Weight: 0,55 kg
