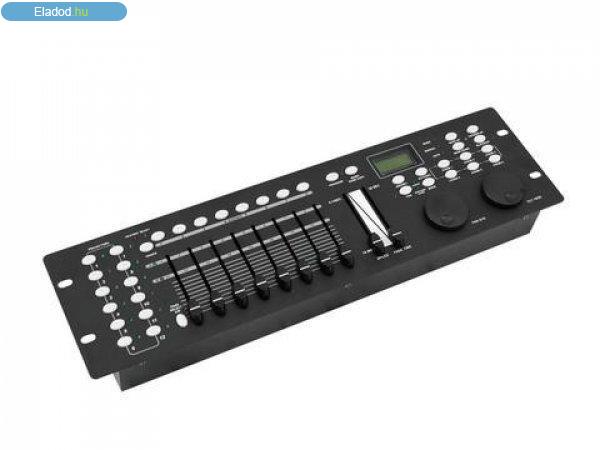

70064518 240 control channels for 12 projectors with up to 20 channels
8 channel faders with two banks for direct control of 16 channels PAN/TILT
encoders All channels freely assignable All channel faders and encoders
can be inverted Fine PAN/TILT movements possible via fine button Fade Time
fader for adjusting the step time Fade Time assignable to only PAN/TILT or
all DMX channels 240 scenes on 30 banks can be programmed 30 programs with
up to 8 scenes can be programmed 6 chasers with up to 240 scenes can be
programmed Copy function for the scenes, programs and banks Blackout
function Fogger button for direct fogger control Sound control via RCA
socket Rack installation with 3 units Power supply:
230 V AC, 50 Hz ~   via 9-12
V DC, 300 mA power unit included in the delivery
Power consumption: 5 W Number of control
channels: 240 Integrated programs:
30 with 8 scenes each Chasers: 6 x 240
scenes Sound-control: via built-in
microphone or via audio-input Audio-input:
RCA Audio-sensitivity: 0.1 - 1 V
DMX512 output: 3-pin XLR connector with polarity
selector Dimensions (LxWxH): 483 x 134 x
90 mm   Rack installation with 3 u
Minimum mounting depth: 170 mm
Weight: 2.5 kg
